Automates Stack Parking
“AUTOMATES delivers smart, space-optimized parking and automation solutions with expert engineering, advanced safety systems, access control, and end-to-end deployment for public and private projects across India.”
Key Features
- Space-Optimized Parking Systems for maximum vehicle capacity.
- Automated Stack Parking Technology with intelligent control
- Advanced Safety & Security Integrations.
- Smart Access & Entry Management .
- Automated Ticketing & Revenue Systems .
G+1 Stack (Model: Elevon-2STi)
The Elevon Series represents the next generation of space-efficient automated parking systems, designed to maximize vehicle capacity within minimal ground space. Engineered with robust structural design, precision-controlled hydraulics, and advanced safety mechanisms, it delivers reliable, smooth, and secure operation. With its modern engineering and focus on efficiency, the Elevon Series sets a new benchmark in automated parking technology.
Building on its innovative framework, the Elevon Series integrates intelligent control systems and smart operational logic to ensure seamless parking management. Its modular design allows easy scalability, making it suitable for commercial complexes, residential towers, and space-constrained urban developments.
Technical Specifications
Parameter
specifications
Max Load
2000 kg
Length
4000–4800 mm
Width
2400–2800 mm
Platform Width
2100–2700 mm
Lifting Height
1800–2000 mm
No. of Parking Slots
2 Cars
Working Mechanism
Hydraulic /
Electrically Operated
Material
MS Column & Hot-Dip Galvanized Platform
Motor
2.5 HP
Travel Speed
40–45 sec
Power Source
Main – AC 415V, 3PH, 50Hz | Lighting – AC 220V, 1PH, 50Hz
Power Consumption
0.03 units/operation (approx.)
Operating Condition
-20°C to 55°C
Operation Control
Push Button Panel with Key Locking System
Structure
One horizontal platform supported on two or four pillars
Safety Systems
Emergency Stopper, Pallet Stopper, Anti-Fall Device, Safety Sensors , Cam limit Switch, Photo Sensor
G+2 Stack (Model: Elevon-3STi)
The Elevon Series represents a new generation of space-efficient automated parking systems, engineered to maximize vehicle capacity within minimal ground space. With robust structural design, precision-driven hydraulics, and an unwavering commitment to operational safety, it delivers exceptional performance and reliability. Elevon sets a new benchmark in modern parking technology, offering smart, efficient, and future-ready solutions.
Designed for today’s evolving urban infrastructure, the Elevon Series seamlessly integrates intelligent automation and advanced system controls to ensure smooth, user-friendly operation. Its modular architecture allows flexible customization for a wide range of commercial, residential, and mixed-use applications. By combining long-lasting durability with smart monitoring capabilities, Elevon enhances parking efficiency, reduces manual intervention, and delivers a highly dependable solution tailored for modern city spaces.
Technical Specifications
Parameter
specifications
Max Load
4000 kg
Length
L1: 4000–4800 mm | L2: 3800–4500 mm
Width
2500–2800 mm
Platform Width
GR: 2100–2400 mm | L1: 2000–2300 mm | L2: 1900–2200 mm
Lifting Height
1800 mm (all levels)
No. of Parking Slots
3 Cars
Working Mechanism
Hydraulic / Electrically Operated
Material
MS Column & Hot-Dip Galvanized Platform
Motor
2.5 HP
Travel Speed
90–100 sec
Power Source
Main – AC 415V, 3PH, 50Hz | Lighting – AC 220V, 1PH, 50Hz
Power Consumption
0.06 units per operation (approx.)
Operation Control
Push Button Panel with Key Locking System
Structure
One horizontal platform supported on two or four pillars
Safety Systems
Emergency Stopper, Pallet Stopper, Anti-Fall Device, Safety Sensors ,Cam limit Switch, Photo Sensor
Automates Puzzle Stack Parking
The Elevon Series represents a new generation of space-efficient automated parking systems, engineered to maximize vehicle capacity within minimal ground space. With robust structural design, precision-driven hydraulics, and an unwavering commitment to operational safety, it delivers exceptional performance and reliability. Elevon sets a new benchmark in modern parking technology, offering smart, efficient, and future-ready solutions.
Designed for today’s evolving urban infrastructure, the Elevon Series seamlessly integrates intelligent automation and advanced system controls to ensure smooth, user-friendly operation. Its modular architecture allows flexible customization for a wide range of commercial, residential, and mixed-use applications. By combining long-lasting durability with smart monitoring capabilities, Elevon enhances parking efficiency, reduces manual intervention, and delivers a highly dependable solution tailored for modern city spaces.
Technical Specifications
Parameter
specifications
MODEL
Elevon 33PZi (3X3 LEVEL HYDRAULIC PUZZLE)
NO OF CARS / UNIT
8 CARS
CAPACITY
2000 KGS. (CAR WEIGHT)
LIFTING MOTOR
2.2 Kw. HYDRAULIC POWER PACK
SLIDING MOTOR
0.75 Kw. GEARED MOTOR
LIFTING SPEED
4.5 MTRS / MIN.
SLIDING SPEED
4.5 MTRS / MIN.
POWER SUPPLY
415 V, 3 PHASE, 50Hz
POSITION (-1+2)
2.5 HP
POSITION (-1+2)
2 ON PALLET
POSITION (-1+2)
3 ON TOP PALLET
OPERATION
LIFTING MOVEMENT BY HYDRAULIC CYLINDERS
OPERATION
SLIDING MOVEMENT BY GEARED MOTOR
CONTROL
PLC CONTROL PANEL WITH PUSH BUTTON KEY
CONTROL OPTIONAL
PLC PROGRAMMED TOUCH SCREEN OPERATED
Height
A IN PIT
B UPPER LEVEL
C UPPER LEVEL
6000 MM
1750 MM
1750 MM
1850 MM
6000 MM
1750 MM
1850 MM
1850 MM
5800 MM
1750 MM
1800 MM
1750 MM
5500 MM
1750 MM
1750 MM
1700 MM
LENGTH (L,1)
5500 MM
WIDTH (W1)
7500 MM
HEIGHT ABOVE GROUND LEVEL H1
4100 MM
PIT HEIGHT (-H1)
2100 MM
TOTAL HEIGHT = (-H1 + H1)
6200 MM

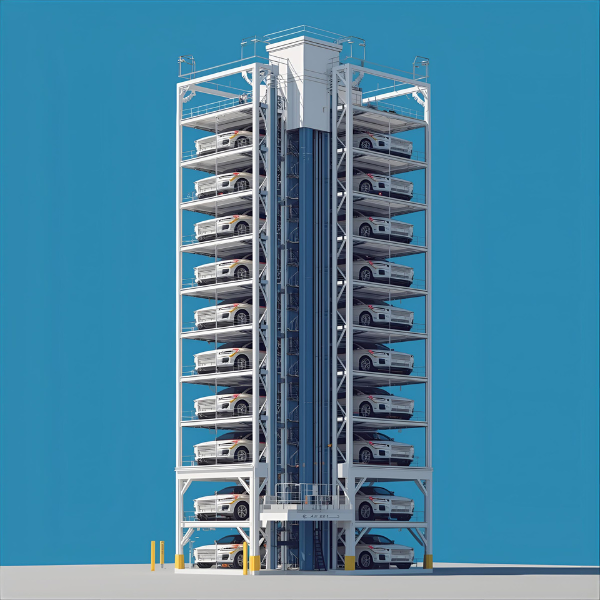

FULLY AUTOMATED TOWER CAR PARKING SYSTEM
FULLY AUTOMATED TOWER CAR PARKING SYSTEM
A fully automated tower car parking system uses vertical lifting technology to store and retrieve vehicles efficiently, maximizing parking capacity while minimizing land usage. It offers fast, safe, and space-saving parking with minimal human intervention.
Key Features
- Easily accommodates a variety of cars Compact structure
- Certified lifting capacity 2000 kg/car
- Lifting speed 2.8 m/min
- Sliding speed 0.30 min/car
- Maximum stacking 8 to 25 Nos
- Operation Push Button
- Control PLC
