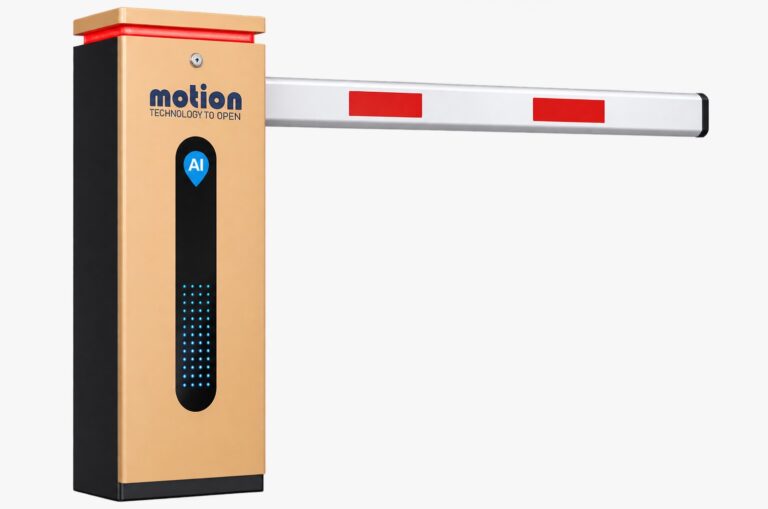

Boom Barrier MOTION-6000N
Motion Boom Barrier
The MOTION-6000N is an automatic boom barrier designed for controlled vehicle access at entrances and exits. It provides fast and reliable operation with a 24V DC brushless motor, durable galvanized steel construction, and continuous-duty performance. condominiums, toll collections, and
industrial entrances.
Key Features
- Fast Opening: Opens in approximately 3–6 seconds.
- 24V DC Brushless Motor: Provides efficient and reliable barrier operation.
- Up to 6m Boom Length: Suitable for wider vehicle entry and exit points.
- Continuous Operation: Designed for 100% duty cycle / continuous use.
- High Protection: IP44 protection for barrier housing and IP67 for the control unit.
Technical Specifications
Parameter
Specification
Model
MOTION-6000N
Power Supply
220-240V ~ 50/60 Hz
Motor
24V DC Brush less motor
Opening Time
3-6 sec
Max. Power
150 W
Max. Torque
240 Nm
Material
Mild Steel
Surface treatment
Pre-hot dip galvanized, 100μm thick + polyester powder coated
Encoder
Incremental, integrated in the motor
Deceleration type
Electronic + mechanical
Beam type
Rectangular
Max Boom Length
6m
Ambient operating temperature
-20°C to +55°C
Protection class
IP 44(barrier Housing) & IP67(Control Unit)
Use frequency
Continuous use
Electronic equipment
E614
Duty Cycle
100% (10 million)
Accessories
Remote, Push Button
Series:
ARCHWAYS
Model:
MOTION 6000N
Model overview:
MOTION-6000N is an automatic boom barrier designed for vehicle access control. It features a 24V DC brushless motor, 3–6 second opening time, and supports a maximum boom length of 6 meters.
Motion Boom Barrier
Lubrication
grease
Motion Boom Barrier
Automates range of automated Boom Barriers offers a
variety of models to provide trustworthy, seamless, and
reliable entry and exit point security for two-wheelers and
cars in car parking sites, condominiums, toll collections, and
industrial entrances.
Key Features
- Barrier operator with electronic control board.
- Telescopic Aluminum ARM barrier with Red Reflective Tape.
- Signaling light.
- Push Button / Key operated button.
- Safety Beam / photo switch / loop sensor.
Technical Specifications
Technical Data
MOTION BOOM BARRIER 6m
MOTION BOOM BARRIER 4m
Power supply
230 Vac
230 Vac
Motor supply
24 Vdc
24 Vdc
Absorbed power
160 W
120 W
Max. absorbed current
6 A
4.5 A
Torque
220 Nm
130 Nm
Opening speed
upto 6 sec
2.5 sec
Operation cycle
Intensive use
Intensive use
Protection level
IP 54
IP 54
Operating temp.
- 20 C/+70 C
- 20 C/+70 C
Lubrication
grease
grease
Weight
61 Kgs
50 Kgs
Series:
ARCHWAYS
Model:
AMBB6000
Model overview:
24 Vdc barrier for intensive use with integrated control unit Up to 6M Boom length
Technical Specifications
Parameter
specifications
Appearance Dimension
350 mm × 281 mm × 1000 mm (Length × Width × Height)
Power Supply
220V ± 10% 50 ~ 60Hz
Voltage
AC110V / 220V
Motor
24V 150W brushless 2-stage variable speed all copper DC motor
Working Environment
-30°C ~ +70°C (Operating temperature range)
Box Thickness
Full-thickness 1.5mm
Operating Speed
Rod lifting: 1.8s - 4s adjustable Note: The specific operating speed is adjusted according to the rod type and rod length.
Toll Barrier
Advanced Automated Security Solutions for controlled access management .
Toll Barrier
A toll barrier ensures fast, automated vehicle control at toll plazas with high-speed operation, enhanced security, and smooth traffic flow.
Key Features
- High-speed opening and closing for quick vehicle processing .
- Designed for continuous heavy-duty operation .
- Accurate vehicle detection with sensors .
- Compatible with RFID, FASTag & toll collection systems .
- Durable, weather-resistant construction .
- Reliable performance in high-traffic conditions .
- Automatic/manual operation modes .
Series:
ARCHWAYS
Model:
AMBB3000RT
Model overview:
AMBB3000RT is a DC Brushless Servo motorized toll boom barrier which are the fastest toll barriers available with the 0.6 seconds.
Technical Specifications
Parameter
specifications
Speed
0.6s
Arm Type
3m
Opening Time (Sec)
0.6s
Motor Rated Power
100W
Duty cycle
100%
Frequency
50HZ/60HZ
Drive system
SFMCU
Housing Dimensions
980*330*285mm
Weight (without boom)
Mechanism: 23kgs, Gate: 45KGS
Protection Class
IP54
Temperature range
-35 to 70 ℃
