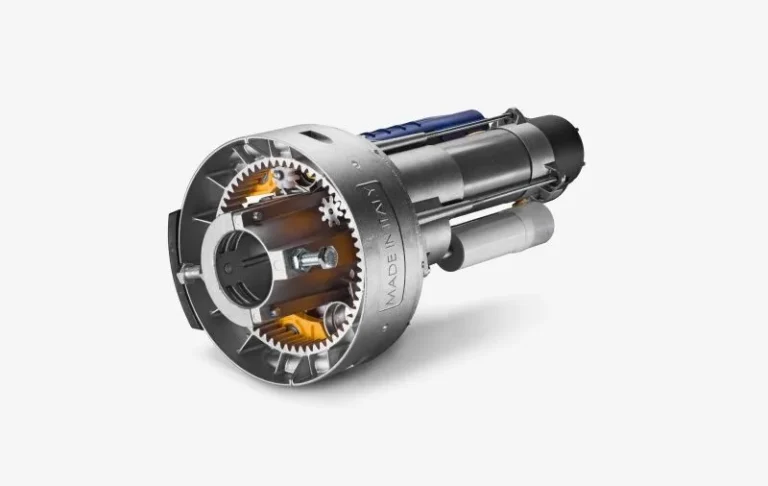

Rolling Shutter Automation
Rolling shutter automation offers a smooth, secure, and convenient solution for controlling shutters with ease. We provide Rolling Shutter Automation (for upto 320kg for Center Motor and 2000kg for Side Motor). These products allow smooth opening and closing of shutter via Remote or a Push Button Instead of Manual efforts.
Key Features
- Smooth Motorized Operation for effortless opening and closing.
- Enhanced Security with strong, durable shutter construction.
- Remote Control Access for easy and convenient operation.
- Low Noise Performance for quiet functioning.
- Safety Sensors to prevent accidents during movement.
Series:
SwiftRoll
Model:
AMSR320
Technical Specifications
Parameter
specifications
Motor Voltage Supply
230Vac 50/50HZ
Max Absorbed Current
3.1A
Absorbed Power
690w/720 W with SRE.X2
Max. Torque
170NM
Capacitor
20 μF
Max rolling shutter stroke
8m
Opening speed without load
10 r.p.m
Limit Switch
Automatic
Operating Temperature
-20 °C ÷ +50 °C
Protection Level
IPX0
Electric motor insulation class
F
Max rolling shutter size
22 m2
Max balanced rolling shutter weight
170kg
Shaft Diameter
200/220mm
Pulley Diameter
60mm(42/48 mm)*
Lubrication
Grease
Weight
5.4kg
Series:
SwiftRoll
Model:
AMSR320
Technical Specifications
Parameter
specifications
Motor Voltage Supply
230Vac 50/50HZ
Max Absorbed Current
5.4A
Absorbed Power
1045w/1075 W with SRE.X2
Max. Torque
320NM
Capacitor
16+16 μF
Max rolling shutter stroke
8m
Opening speed without load
10 r.p.m
Limit Switch
Automatic
Operating Temperature
-20 °C ÷ +50 °C
Protection Level
IPX0
Electric motor insulation class
F
Max rolling shutter size
32 m2
Max balanced rolling shutter weight
170kg
Shaft Diameter
60mm(42/48 mm)*
Pulley Diameter
200/220mm
Lubrication
Grease
Weight
9.3kg
